Product parameters:

Advantages of clipped network floor:

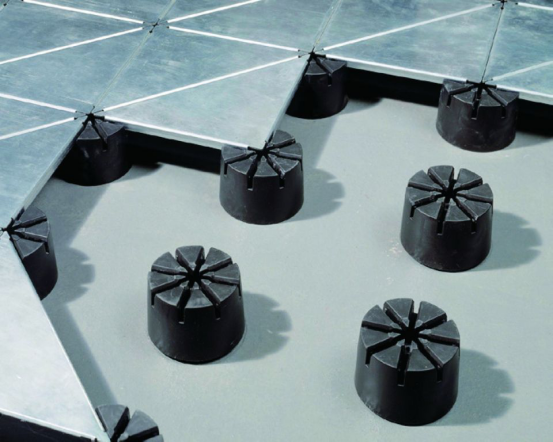

1.Triangle is the most stable plane geometrical structure in the nature,This product adopts the triangle shape and all lines and angles are added with lacing wire to guarantee no deformation.

2.In the angles and comers of the tnangle covering board are adjusting plates and prying holes for adjusting the floor.

3.Modularized round table brackets(with the diameter of the upper surface of 90mm)are adopted and the lacing wire of the covering board is automatically fixed without looseness to guarantee noiseless and comfortable feeling in stepping on it.

4.It has safe fire prevention(A level for covering board and FV-0 level brackets).

5.It is characterized with high bearing capacity.with a limit concentrated load of the triangle covering board of 3000 kilograms and that of the brackets of 1500 kilograms.After flooring,it has an average load of 800 kilograms per square meters,capable of carrying heavy fumiture and equipment.

Scope of use:

This kind of network floor is the most advanced structure within the product category,applicable for top-grade offices,office buildings,and top-grade computer rooms.

Steps:

1.Card type buckle floor is the network “building blocks”style installation,installation speed.

2.With the whole board began laying floor.

3.The stuffing the edge.

4.Floor shop is finished,the automatic formation go trough ,can be arbitrary wiring ,satisfy the demand of complex cabling.

5.Floor open hole schemes.

6.Roughness is high ,can laid PVC materials.

Per square meter floor calculation method:44.44 block 22 stent accessories(need to separate customized);Stuffing,side cover plate,the door slope,metal bridge,socket,etc.
